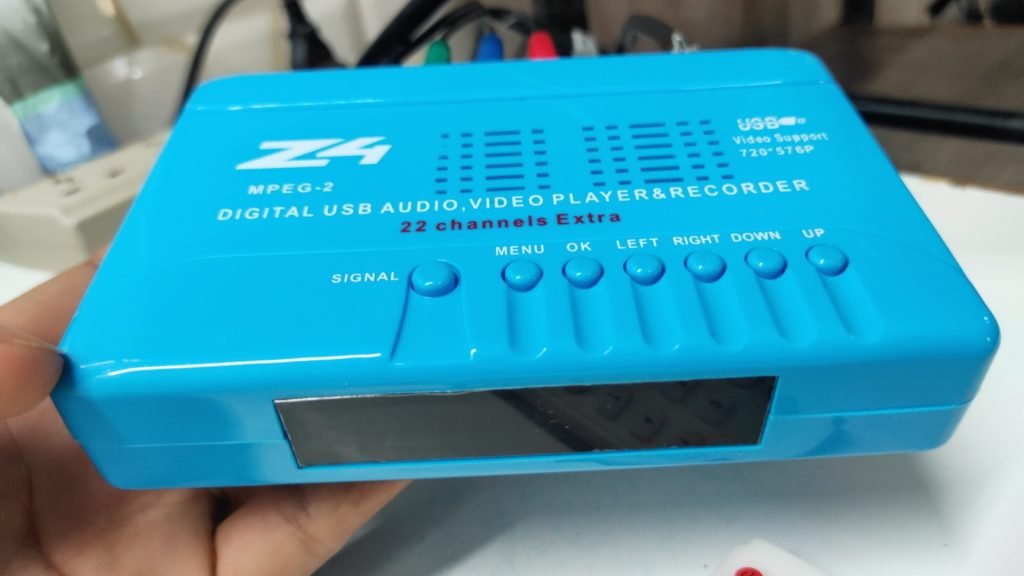

Z4 MPEG-2 Free to Air SetTopBox
This is an Advanced Technology Box which provides many functions like extra channels received and also has a signal button that helps to show signal percentage on display, so basically the Z4 MPEG-2 Free to Air SetTopBox is a different form
1. General Information
1.1. Safety use
* Please read this manual carefully before Z4 MPEG-2 Free to Air SetTopBox first-time use. * Do not place heavy items on the device. * Do not lay the device close to the heating source, in the sunshine, in a place with strong vibration, or full of dust. * Clean the device with soft dry fabric, do not drop the liquid into the device to prevent damage. * Place the device in ventilated surroundings. * Contact the provider in case of malfunction happen. * Damaging the device on operation without following the guideline would not be warranted.
We reserve the right to make changes to its products at any time without notice in order to improve design and supply the best possible product. Accordingly operation method may change. If you have any question, please consult the manufacturer.
1.2. Features
* Z4 MPEG-2 Free to Air SetTopBox Accurate and convenient facility for antenna installation with hotkey * Support 0/22KHz control and DisEqc1.0 and DisEqcl.1 contro] * Support signal strength (Intensity) and quality display * Support full DVB-S and DVB-S2 function * Support SD/MPEG2 * Support PVR, the programs recording and playback * Z4 MPEG-2 Free to Air SetTopBox Support Media player of Video, Music and Picture by USB disk * Z4 MPEG-2 Free to Air SetTopBox Support Video files of MP4 / M DAT / FLV / MKV OV /MPG / MPEG / VOB / TS/3GP/ Avi * Support Max SD Video Resolution Ol n of 720*576 * Z4 MPEG-2 Free to Air SetTopBox Support the music/song of MP3 formate * Support English and Hindi LanguagesMenu *Z4 MPEG-2 Free to Air SetTopBox Supported Clock Display in Standby Mode

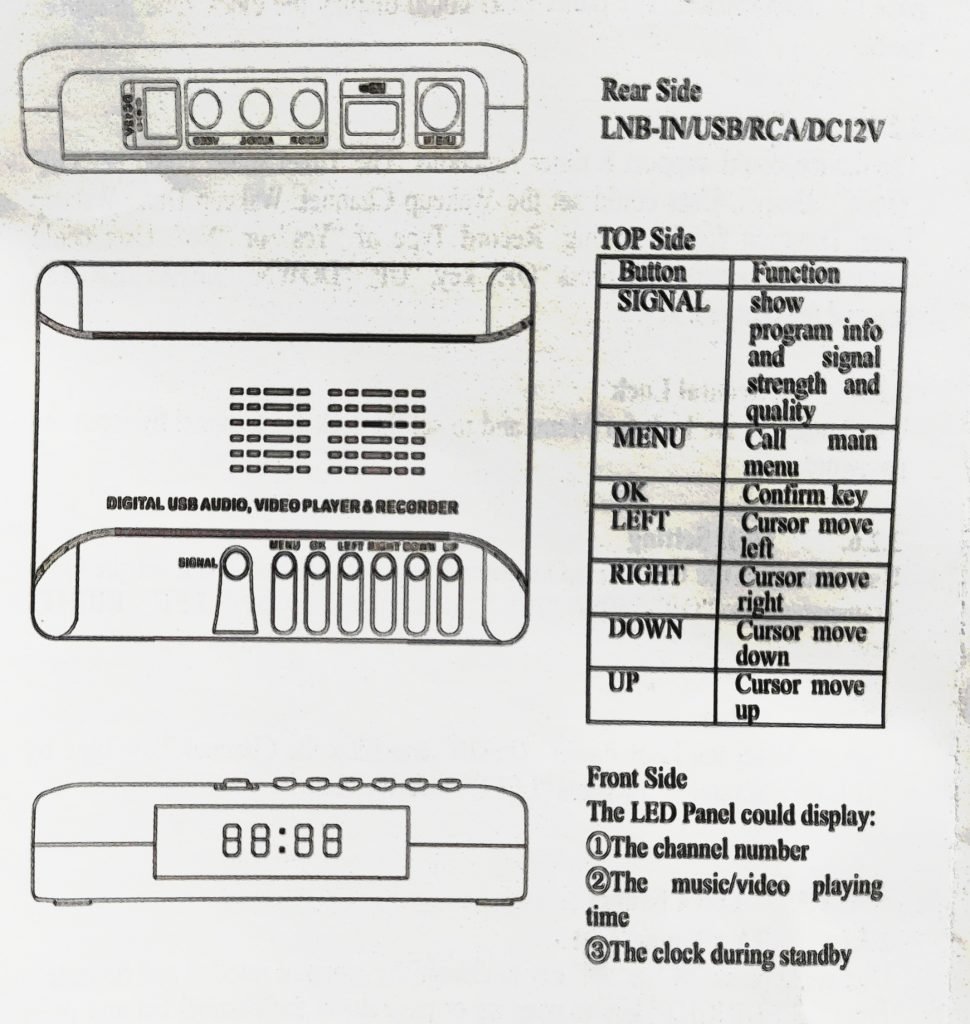

1.3. Z4 MPEG-2 Free to Air SetTopBox Panel introduction
1.4.Specifications
1) Input Signal:
Frequency Range: 950MHz~2150MHz
Symbol rate:1Mpsp~45Msps
Connectors: F-Type female
2) Power Supply Input: 12V DC 1000mA
3) Operating temperature: -10°C ~ +50 °C

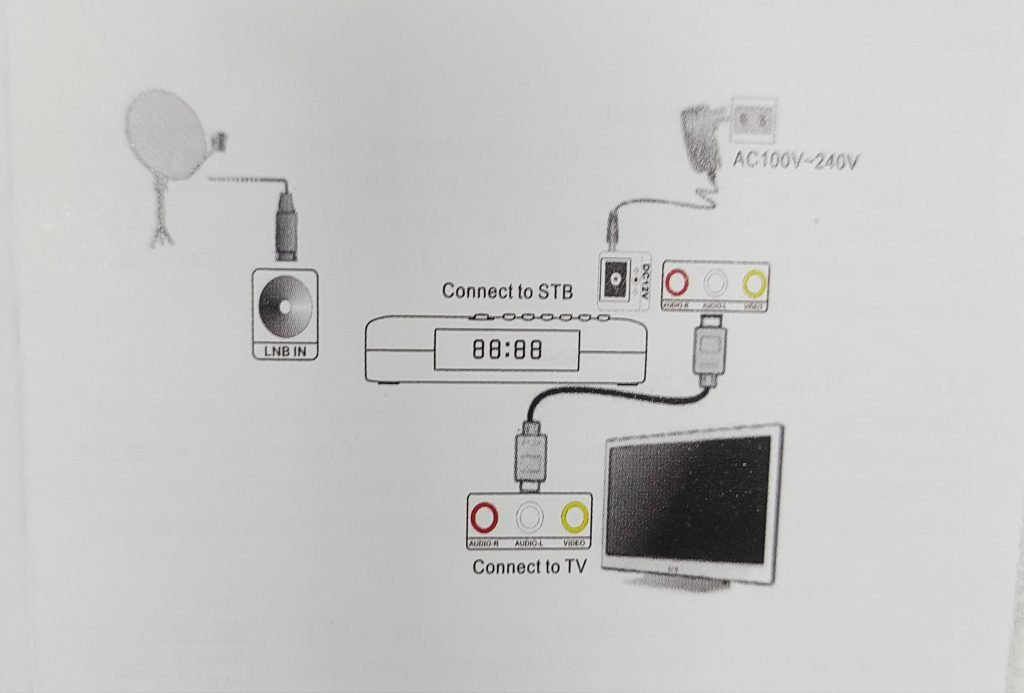

1.5. Connection Diagram

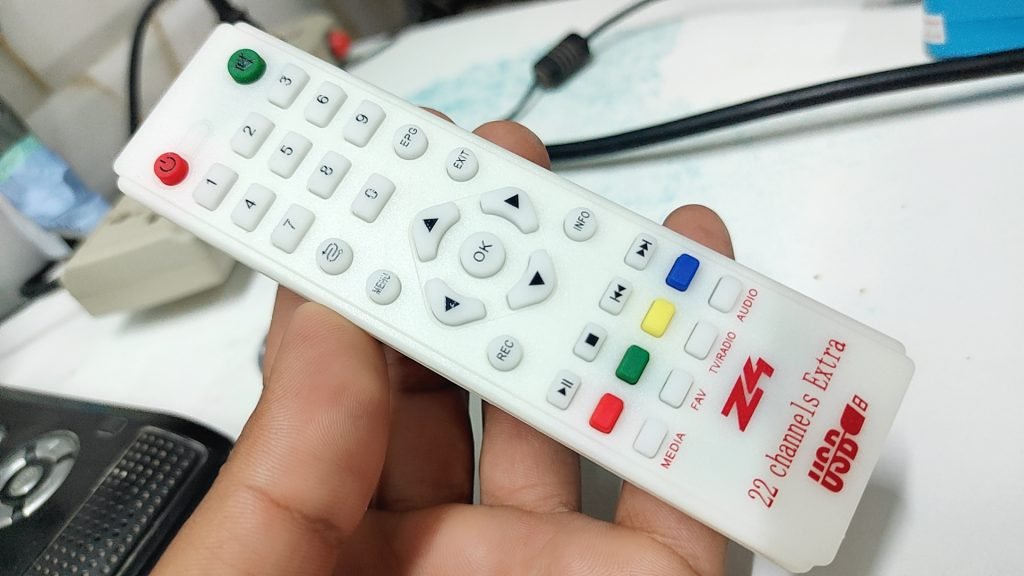

1.6.Remote Control Unit Introduction
2. Main menu operations
Press the “MENU” button to enter the main menu after the power is connected and powered on.
Press “UP” or “DOWN” or “LEFT” or “RIGHT” button to move cursor to the function selected then press “OK” button to confirm(enter). There are Five Items of 1st -level Menu in the left frame of the Main Menu,including “Installation” “System Setup” “Edit Channel” “Tools” “Multimedia”And its sub-menu is in the right frame of the 1%-level menu. Press the “RIGHT” key and the “UP” or “DOWN” key to select the target sub-menu and press “OK” to enter the sub-menu interface for further operation.

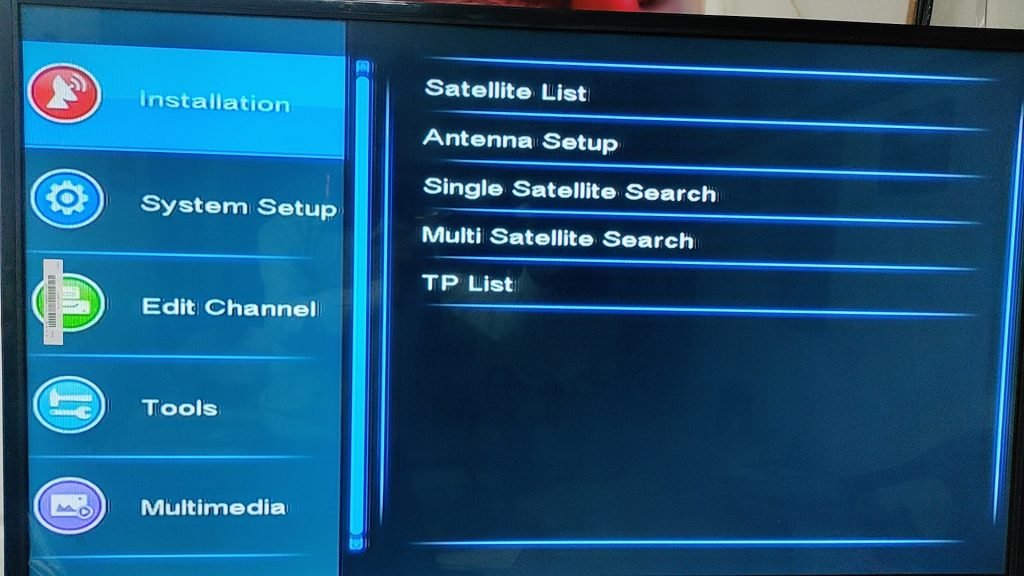

Z4 MPEG-2 Free to Air SetTopBox main menu interface
2.1 Installation
2.1.1 Satellite List
The existing satellites will be listed here in this “Satellite List” interface. Press the “Red” key to edit the selected satellite Name and Longitude. Press the “Green” Key to add a new satellite. Press the “Blue” key to delete the satellite. Press the “Yellow” key to jump to the “Antenna Setup ” Interface for further setup operation. Before jumping to the “Antenna Setup” interface, select a target satellite and press and press “OK” key to confirm the selection.
2.1.2.Antenna setup
In this Satellite List interface, the existing Satellite will be listed here.
user could select the satellite to setup its LNB 3 cable
Frequency, Transponder, DiSE4C1.0/1.1/, Moto type, 22k.
fzs been connected and the parameters setting is right, the capacity and Quality value will be displayed.
2.1.3.“Single Satellite Search”
in this interface, the user could select the parameters of “Satellite” the “LEFT” key or the “RIGHT” key. After The parameters setting is done, then go to “Search” and press the “OK” key to start the scan. Normally, The user could select the “Auto Scan” in the “Scan Mode” to do the blind scan for the new satellite without any TP Information.
2.1.4 Multi Satellite Search
This interface has the same function as the “Single Satellite Search setting. But it could support the user to do the program scan for multi-s satellites in sequence when the LNB has connected to a switcher for multi-dish at the same time. The user should be experienced with the multi-dish & multi-LNB connection with the switcher device.
1.5.TP List
In this interface, the user could select the satellite by the “LEFT” or “RIGHT” key. the satellite is selected, its transponder parameters of “Frequency” “Symbol Rate” “Polarity” will be listed following.
Press the “Red” key to Edit, press the “Green” key to Add, and press the “Yellow” key to R for its program.
Delete, and press the “Blue” key to Search the transponder the LNB cable is connected the transponder parameter setting is right and the selected transponder’s “Signal Intensity” and “Signal Quality” display bar will be shown normally.
2.2. System Setup
22.1.Language
Z4 MPEG-2 Free to Air SetTopBox Menu and Audio and Teletext by the “LEFT” User could select the language “RIGHT” key in this interface. This product could support English and Hindi language for the menu.
2.2.1. TV System
According to the TV set, the user could select the display mode of “NTSC” “PAT “AUTO” and select the Aspect mode of 4:3” “16:9” “AUTO” by the “LEFT” “RIGHT” key.
2.2.3. Local Time Setting
Z4 MPEG-2 Free to Air SetTopBox In This interface, the user can set the GTM and the offset. The date and Time could be set automatically by The device according to the satellite stream data. The device GTM And offset value have been set as the new Delhi time zone for the Indian market. The panel LED could display the clock time in stand-by mode.
2.2.4. Timer Setting
Z4 MPEG-2 Free to Air SetTopBox could support 8 timer functions. The Time mode could be”off” “Once” “Daily”. The user could set the “Wakeup Channel, Wakeup Date, Wakeup time, duration for Recording, and Record Type of “Yes” or “No” The user could change The parameters by press “OK” key, “UP” “DOWN” “LEFT” “RIGHT” key and the numeric key.
2.2.5.Parental Lock
Users could set the lock for Menu and to set the lock for Channel by input the password.
2.2.6.OSD Setting
The user could set the OSD Timeout from 3 to 7 seconds and could set the OSD Transparency to “Off” “10%” “20%” “30%” “40%” by the “LEFT” “RIGHT” key.
2.2.7.Other
The user could set the LNB Power “On/Off” and filter the Channel Play Type by
“ALL/Free/Scramble” by press the “LEFT” “RIGHT” key.
2.3.Edit Channel
2.3.1.TV Channel List
Users could press the “4 or * key to change the group of satellites and favourite. Press the “LEFT/RIGHT” key to page up or page down the channel list and press the “UP/DOWN” key to select the target channel
Press the “FAV” key to set the program to your favourite group.
Press the “Red” key to lock the program by password.
Press the “Green” key to delete the program.
Press the “Yellow” key to move the program up or do
Press the “Blue” key to edit the program with new hotkey. Including “Red” key for sort,“Green” key for Rename, “Blue” key for Skip, “Yellow” key for PID.
After all edit is done, press “Exit” to return to the live play screen.
2.3.2.Radio Channel List
Its operation is same as TV Channel List, Refer to TV Channel List operation.
2.3.3. Delete All
Press “OK”, it will show the warning to let user to confirm whether to delete all TV & Radio channels. Select “Yes” or “No” and press “OK” to confirm the delete or not.
If user deletes all channels by maloperation, the channels could be restored to default status in factory by “Tools”=>“Factory Setting” menu operation.
2.3.4.FAV
Z4 MPEG-2 Free to Air SetTopBox could support 8 FAV group. In this interface, user could modify the FAV name in the rename interface by press “OK” key. The FAV group could be used for TV Channel List and Radio Channel List. Please be noted that the FAV name should be at lease 4 characters length.
2.4.Tools
2.4.1. Upgrade By RS232
Z4 MPEG-2 Free to Air SetTopBox function and interface is only for factory manufacturing and engineering. The device does not provide the RS232 port for the user.
2.4.2.Upgrade By USB
Z4 MPEG-2 Free to Air SetTopBox software upgrade, user should get the “image all dump.bin” file from manufacturer and copy it to root folder of USB disk and plug the USB disk to device by USB port. After USB disk has been connected, Select the Mode as “All” and move cursor to Start and press “OK” to start Upgrade.

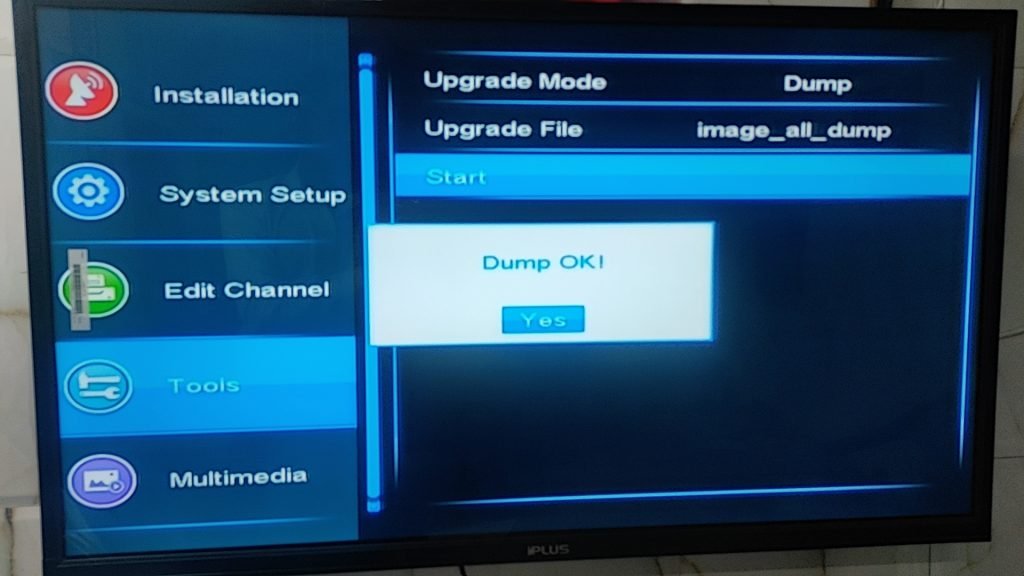

For dump software, user just plug in the USB disk to device and change the Mode to “Dump” and move cursor to Start and press “OK” to dump a USB disk with file name “image all dump.bin”. Maybe manufacturer this dump file for local satellite and transponder’s parameters and channel information updating.
2.4.3.Factory Setting
Z4 MPEG-2 Free to Air SetTopBox Restore the device setting and satellite and channel list to the default status in factory. select “Yes” and Press “OK” to complete the restoring.
2.4.4.information
In just shown the device information of manufacturer, software version, hardware version, release date, loader version and serial number.
2.5.Multimedia
This menu could be activated by the hot key of “MEDIA”.
2.5.1.PVR
User could select the recording file by “UP” “DOWN” “OK” key and to play back in this interface.
Press “Yellow” key to delete the recording file:
Press numeric “1” key could switch the media play between PVR, Movie, Music, Photo directly.
2.5.2.Movie
User could select the video file by “UP” “DOWN” “OK” key. User could play/pause the video by press “Play/Pause” key and stop and restart the video by press “Start/Stop” key.
Press numeric “1” key could switch the media play between PVR, Movie,Music, Photo directly.
Press numeric “3” key could switch the Play mode between “repeat current file”“repeat current folder in sequence” repeat current folder in random”.
Press “M0 key to jump to previous video file. Press “Mikey to jump to next video file.
2.5.3.Music
User could select the music file by “UP” “DOWN” “OK” key. User could play/pause the music by press “Play/Pause” key and stop and restart the music by press “Start/Stop” key.
Press numeric “1” key could switch the media play between PVR, Movie,Music, Photo directly.
Press numeric “3” key could switch the Play mode between “repeat current file” “repeat current folder in sequence” repeat current folder in random”.Press “#0” key to jump to previous music file. Press “Mikey to jump to next music file.
2.5.4.Photo
User could select the photo file by “UP” “DOWN” “OK” key. When in the full screen display of photo, user could refresh the photo display by press “LEFT” or “RIGHT” key and change to next/previous photo by press “DOWN/UP” key. Press numeric “1” key could switch the media play between PVR, Movie, Music, Photo,
2.5.5.Disk Info
It just shows the information of Disk file system, free space and total space for user interface,
2.6.The Hot Key in Live Play Screen,
2.6.1.“OK” key
In the live play screen, press “OK” to show the channel list interface, In this interface, Press “Blue” key to select the satellite or Press “Red” key to do the channel search by input the name.
Press “Green” key to do the sorting by select the sort type of Name(A-Z) or Name(Z-A) or Free/Scramble or Lock or TP.
Press “#8” or “MN” key to change the group of satellite and favorite
Press “LEFT/RIGHT” key to page up or page down the channel fist and press
“UP/DOWN” key to select the target channel
2.6.2.“FAV” Key
In the live play screen, press “FAV” to show the favorite channel fist interface. Its operation is same as “OK” Key description as above,
Watch the full video of Z4 MPEG-2 Free to Air SetTopBox all details visually and don’t forget to like the video.
Here is the dump file of this Z4 MPEG-2 Free to Air SetTopBox you can download it from the link
