Description

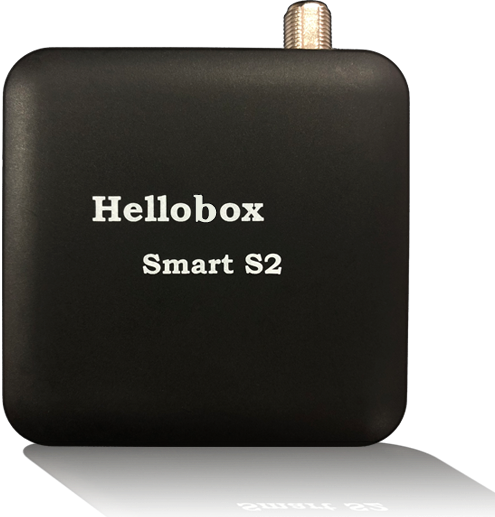

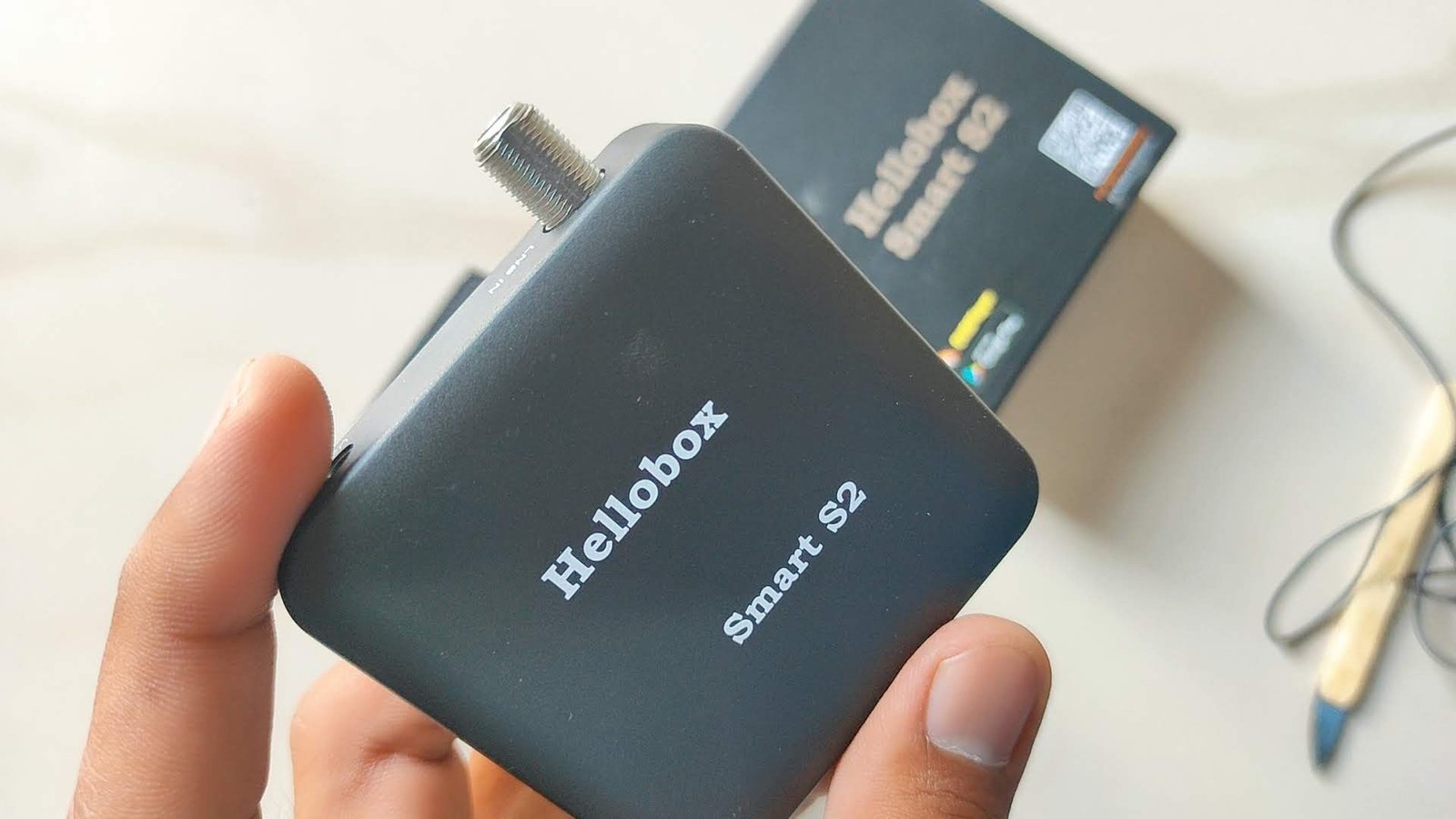

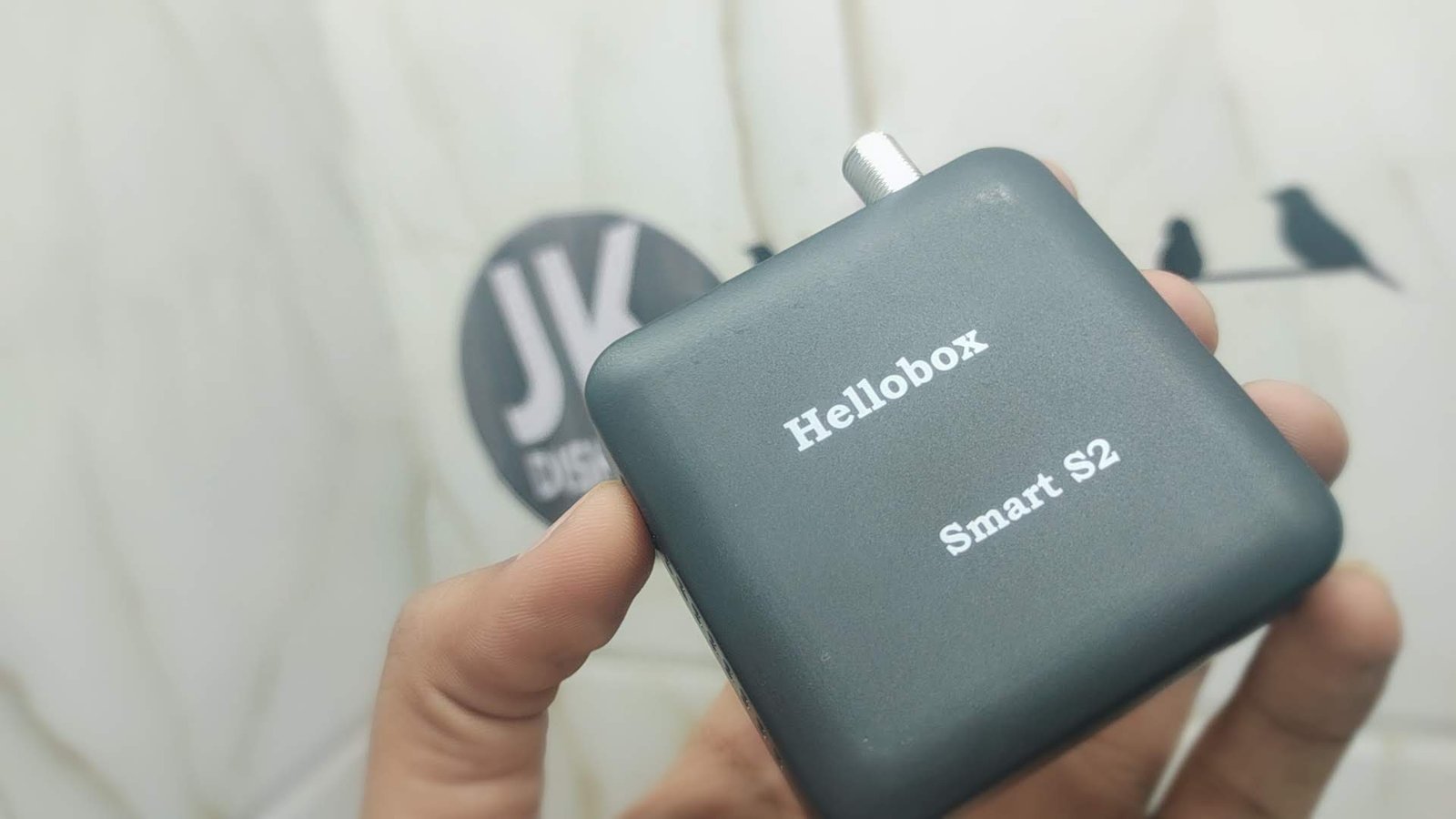

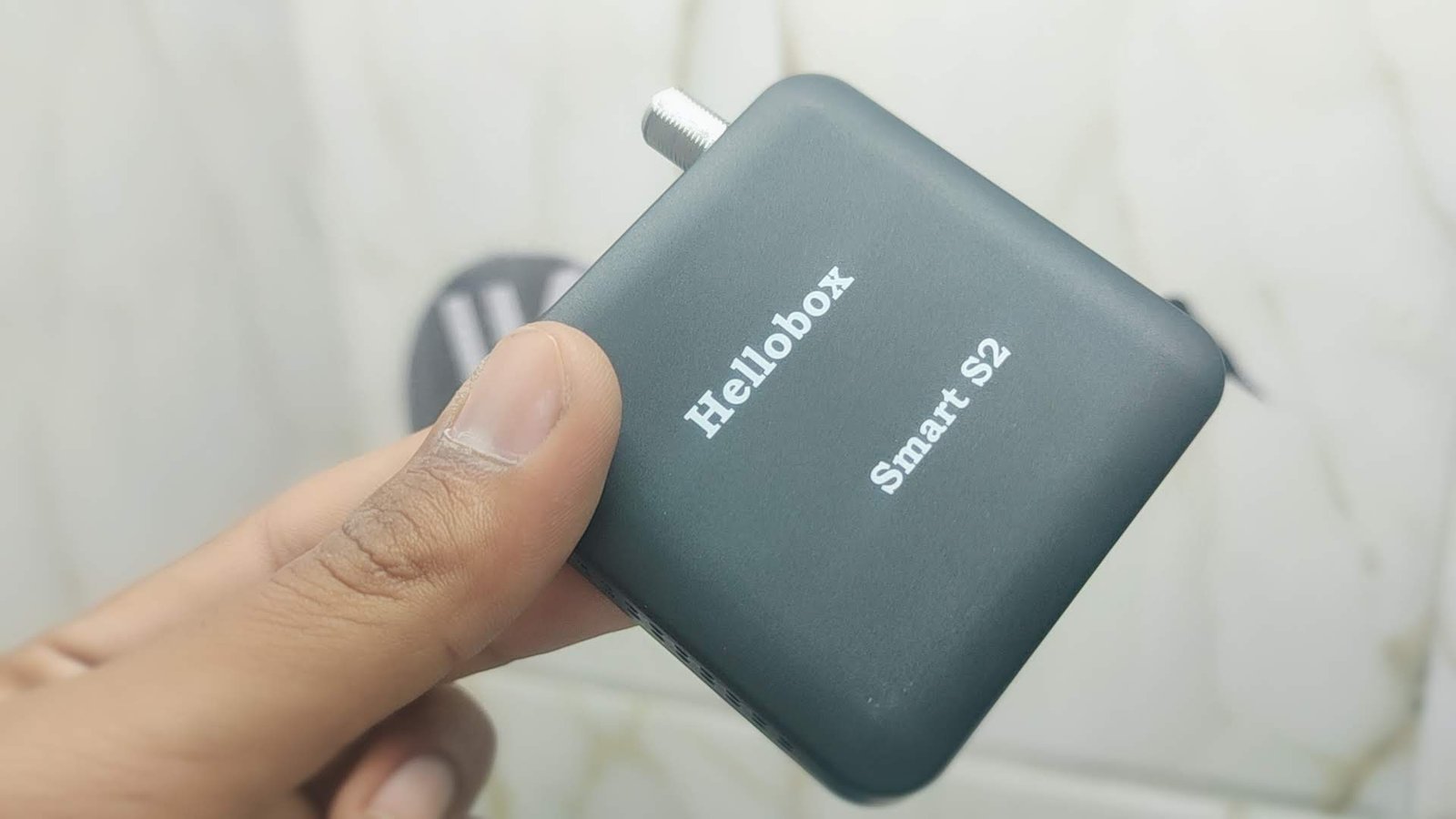

Hellobox Smart S2

DVB Stream Media Interface Processor:- K7
It integrates QPSK/8PSK/16APSK/32APSK DVB-S/DVB-S2 demodulator and FEC
High-performance dual ADC with 10 bits, up to 125 MHz
High-speed search mode for the blind acquisition of symbol rate
The 32-bit RISC CPU integrates 16Kbytes I cache and 16Kbytes D cache
It supports 32 PID filtering with a filter depth of 16 bytes each
Integrated USB 2.0 host, high-speed and high-speed devices supported
High-speed, low consumption 1Gb DDR memory Embedded

DVB-S/S2 input 950~2150MHz, level -65~-25dBm
USB 2.0 port for external Ethernet RJ45
Built-in Bluetooth BLE 4.0 module
Built-in WiFi module 802.11 b/g/n 150 Mb/s
Power consumption: DC5V 2.4A
The dynamic range of power consumption is 3~6W
