यहां आप Ch341a USB मिनी प्रोग्रामर के लिए नया अपडेटेड सॉफ्टवेयर डाउनलोड कर सकते हैं। Ch341a मिनी प्रोग्रामर विशिष्टताओं के बारे में भी पढ़ें। आप Ch341a प्रोग्रामर के लिए Android Mobile सॉफ़्टवेयर भी डाउनलोड कर सकते हैं।
CH341A 24 25 Series EEPROM Flash BIOS USB Programmer + SOIC8 SOP8 Flash Chip IC Test Clips Socket Adapter Programmer
Ch341a Programmer Software Free Download
CH341A COLIBRI VERSION 1.01.63
PinTester CS PWM For Ch341a/b & AsProgrammer
Ch341a & AsProgrammer Version 2.0.3a
SiberiaProg Ch341a New Update V1.45
What is the Ch341a USB Mini Programmer?
Ch341a is a mini USB programmer that helps flash firmware on flash memory ICs. There are many types and series of flash memory ICs on the market. But the lowprofile Ch341a USB mini programmer is designed to support 24 Eeprom and 25 SPI flash 8-pin and 16pin SPI flash memory. The ch341a chip is installed, which can identify EEPROM 24 and SPI flash, and there is a green light indicating that the module is working. The Ch341a programmer is extremely user-friendly and also supports USB to TTL communication.
Ch341a Programmer Software for Android.
Ch341a is almost compatible with the flash of the digital satellite receiver. You can use this programmer on your smartphone using the combined APK tool, which you can also download from the download link above in this article. To use the combo tool, you can watch the video tutorial on Youtube. The following programmers can also use the USB bus to control UART, printer port, 2-wire or 4-wire parallel and synchronous serial.

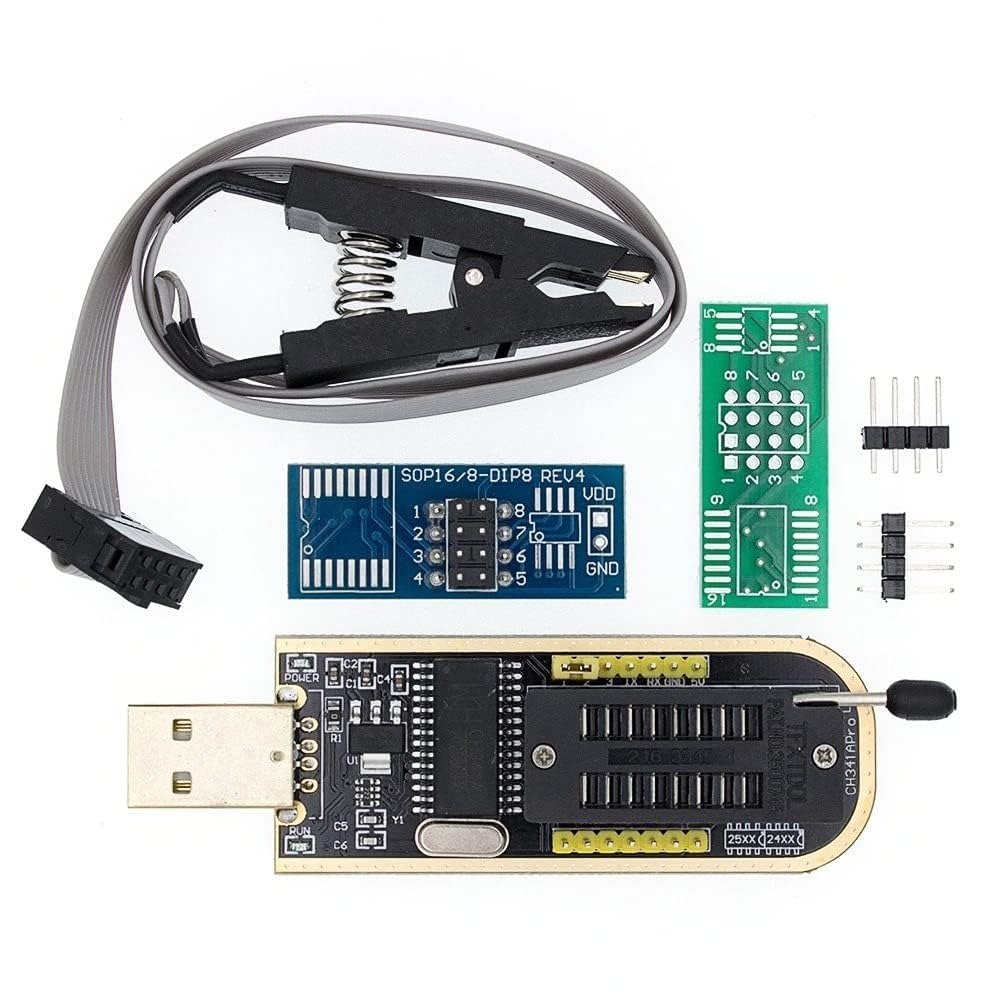

CH341A 24 25 Series EEPROM Flash BIOS USB Programmer + SOIC8 SOP8 Flash Chip IC Test Clips Socket Adpter Programmer
Product Description
Some motherboards can directly clip the chip, but some chips are affected by peripheral circuits and cannot be operated like this. Check the chip location on the motherboard before purchasing. The test clip can be used with many high-power programmers. When a programmer with a protected function is encountered, the clip cannot be read at normal voltage. You need to add a 3.3V voltage. How to use: Hold the chip first, and add a 3.3V voltage to the pin corresponding to the 8th pin of the chip. Generally, the 3.3V power supply has two wires, the VCC is connected to the clip, and the other wire is grounded. 3. Do not forcibly press down when clamping, first open the clip and clip it from the left and right sides of the chip. When disassembling, please don’t pull it out directly. First separate the clips left and right, then take them out so they won’t break the tip.
