Stargold 5G Filter C-Band One Cable Solution LNBF is a type of Low Noise Blocker Filter (LNBF) designed for satellite communication, especially for C-band frequencies, which is ideal for cable TV operators, television broadcasters, and C-band is the most suitable—personal observation of FTA channels.

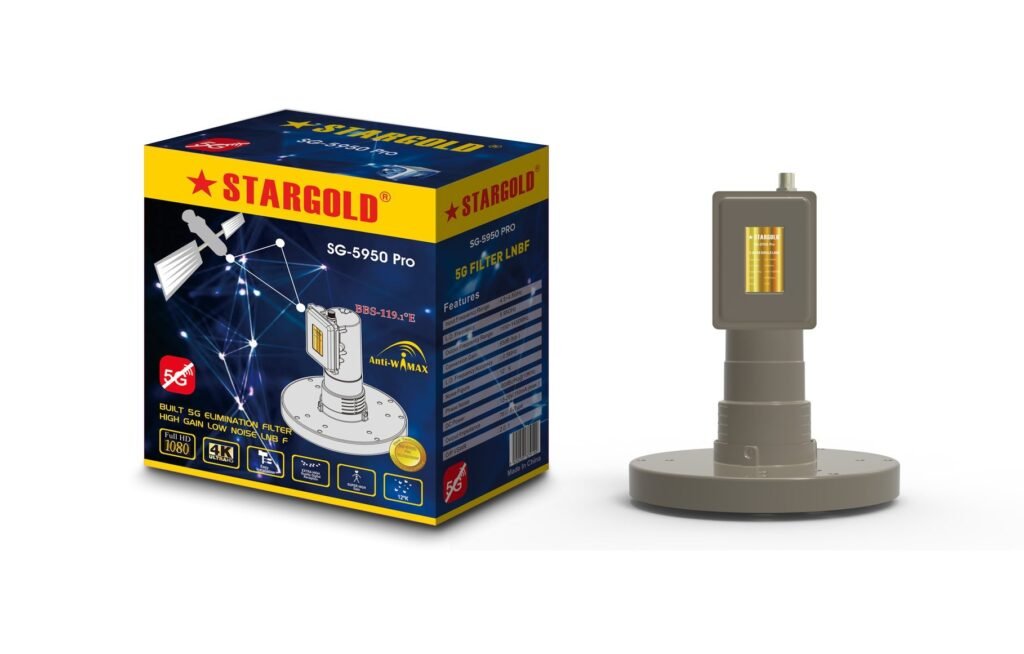

Stargold 5G C-Band LNBF
Product Description
- Full HD 1080
- 4K ULTRA HD
- EASY INSTALLATION
- EXTRA HIGH-QUALITY DIGITAL RECEPTION
- SUPER HIGH GAIN
- 12’K
- SPECIAL FOR BBS-119.1°E
SG-5950 PRO
5G FILTER LNBF
Features
| Input Frequency Range | 4.5-4.8GHz |
| L.O. Frequency | 5.95GHZ |
| Output Frequency Range | 1150-1450MHz |
| Conversion Gain | 65dB (typ.) |
| L.O. Frequency Accuracy | ±0.5MHz |
| Noise Figure | 12 K |
| Phase Noise | -80dBc/Hz@10KHz |
| DC Power | 13-20V/110mA (max) |
| Output Impedance | 75* F-Type |
| O/P VSWR | 2.0:1 |
| 5G | Made In China |
Benefits –
Low interference: The 5G filter LNB helps to reduce interference from 5G mobile networks, ensuring a stable and clear satellite signal.
Easy installation: The one-cable solution simplifies the installation process, reduces the risk of signal degradation, and makes it easy to set up.
Good signal quality: The low noise-blocking feature ensures a high-quality reception signal, providing a better viewing experience.
Applications –
Satellite transmission: The solid 5G filter C-band one cable solution LNBF suits satellite transmission applications, such as TV broadcasting and telecommunications services.
Telecommunications: This device can be used for satellite-based FTA TV channel services.
