What is the Ku-Band? | Ku-Band Offsat Dish Antenna

rusty satellite dishes attached to a building

Ku-band is a part of the electromagnetic spectrum that ranges from 12 to 18 GHz. It is used for satellite communications and broadcasting, including direct-to-home (DTH) television services, VSAT (Very Small Aperture Terminal) networks, and other data transmission applications.

However, Ku-band signals are more susceptible to atmospheric interference such as raindrops, which can cause temporary interference in the transmission of signals. To overcome this, many satellite communication systems use advanced error correction techniques and signal processing algorithms to ensure reliable communication.

Offset Dish focal point calculator

Calculating the focal point of an offset dish requires knowledge of the dish’s dimensions and the angle of offset. Here are the steps to calculate the focal point of an offset dish:

  1. Measure the diameter of the dish. Let’s say it’s 1 meter.
  2. Measure the depth of the dish, from the centre to the edge of the dish. Let’s say it’s 0.5 meters.
  3. Measure the offset angle of the dish. This is the angle between the axis of the dish and the feedhorn. Let’s say it’s 24 degrees.
  4. Use the following formula to calculate the focal point distance (F) from the centre of the dish:

F = (D/2)^2 / (16 x (tan(O/2))^2 + (D/4))

where: D = diameter of the dish O = offset angle in radians (O = offset angle x pi / 180)

Plugging in our example values, we get:

O = 24 x pi / 180 = 0.4189 radians

F = (1/2)^2 / (16 x (tan(0.4189/2))^2 + (1/4)) = 0.333 meters or 333 millimeters

Therefore, the focal point of the offset dish is 333 millimetres from the centre of the dish. This is the distance from where the feedhorn should be placed to ensure proper signal reception.

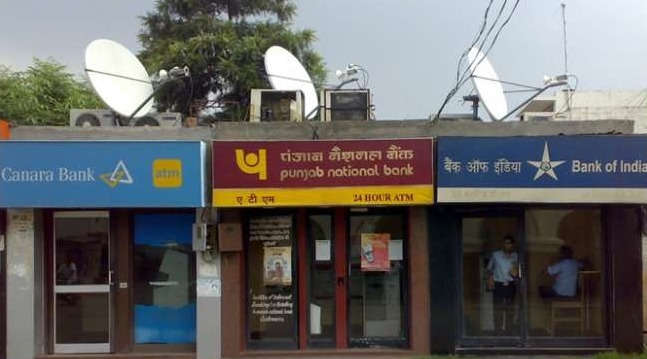

ATM dish antenna price

ATM dish antenna price

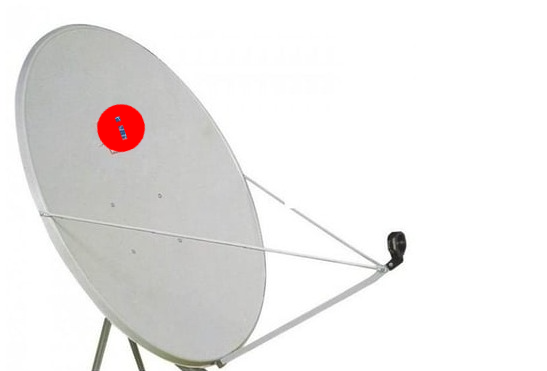

offset antenna

types of dish antenna

old dish antenna for sale

90cm dish antenna

90 cm DTH KU-Band Satellite Dish

Best Suitable For:
DD Direct Plus
Dish TV
Videocon D2H
Airtel Digital TV
Sun Direct DTH
Nilesat , Eutelsat , Yahsat Etc

3 feet dish price

120cm ku band dish price
